- 產品說明DESCRIPTION

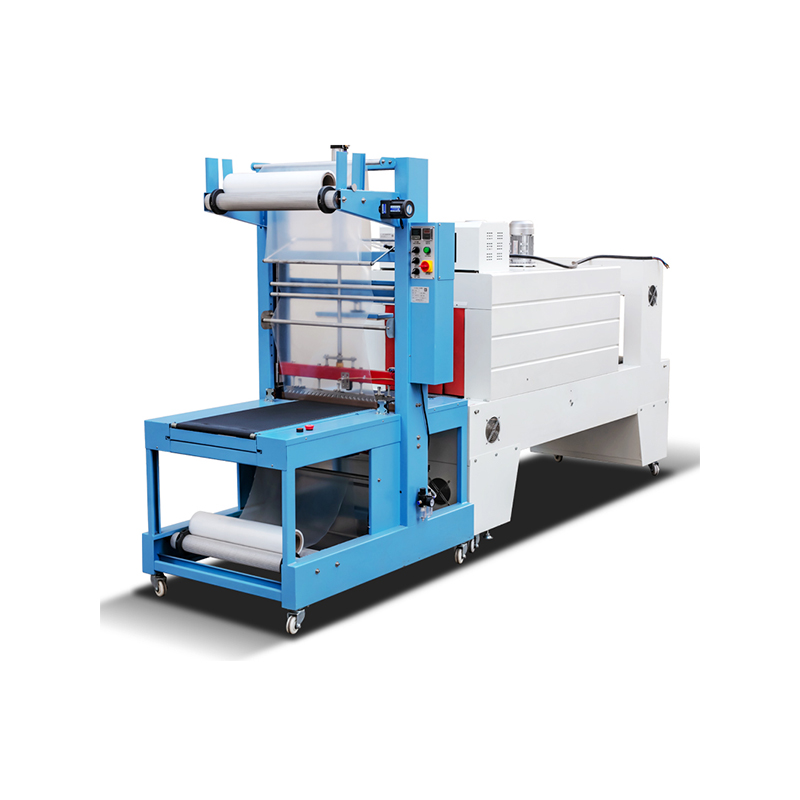

全自動直進料袖口式包裝機，采用獨特的直線式設計，結構緊湊占地面積，針對一些場地受限及包裝過程中無需調整產品前進方向，十分方便，不會受包裝物長度的限制，可獨立工作，也可與生產線對接自動進料、裹膜、封切、收縮、冷卻、定型，無人化流水作業。
The fully automatic straight feeding sleeve type packaging machine adopts a unique linear design, with a compact structure and occupying an area. It is very convenient for some limited space and packaging processes without the need to adjust the product’s forward direction. It is not limited by the length of the packaging material and can work independently. It can also be connected to the production line for automatic feeding, film wrapping, sealing, shrinking, cooling, shaping, and unmanned assembly line operation.
- 適用范圍Scope of application
本套設備廣泛應用于紙箱、飲料、食品、電子、玩具、五金產品、化妝品、藥品、日用品、電器等行業的產品。
This set of equipment is widely used in industries such as cardboard boxes, beverages, food, electronics, toys, hardware products, cosmetics, pharmaceuticals, daily necessities, and electrical appliances.
- 技術參數表Technical parameter table
| 型號 | Model | FL-7540D | 型號 | Model | BSE-6040 |
| 電源電壓 | supply voltage | 220V，50/60HZ | 電源電壓 | supply voltage | 380V/50-60HZ |
| 功率 | power | 1.5KW | |||
| 包裝速度 | Packaging speed | 8-10Packing/minute | |||
| 工作氣壓 | Working air pressure | 8Kg/cm2 | 加熱管功率 | Heating tube power | 24KW Adjuster |
| 膜的寬度 | The width of the membrane | 750mm | 輸送速度 | Conveying speed | 0-10m/min |
| 封切時間 | Sealing and cutting time | 0.5-1.5s | 收縮爐尺寸 | Shrinkage furnace size | 1800x600x400mm |
| 進料臺水平高度 | Horizontal height of feeding table | 800±50mm | |||
| 載重量 | Load capacity | 25KG | 載重量 | Load capacity | 30KG MAX |
| 最大包裝尺寸 | Maximum packaging size | ∞*550*360mm | 機器重量 | machine weight | 350KGS |
| 機器重量 | machine weight | 330KGS | 機器尺寸 | Machine dimensions | 2800X1020X1520mm |
| 適用收縮膜 | Applicable shrink film | PE | 適用收縮膜 | Applicable shrink film | PE，PVC POF |
?
支持非標定制Support non-standard customization
